Controller/Joystick Information

• Intelligentized control, import from PG, UK.

•12 months warranty in worldwide.

•Speed range: 1-6km/h.

•Visible battery power.

• Revolving: 360°.

•Fault warning.

Battery Charger Information:

•Aluminum cover, good heat dissipation.

•Voltage switch: 110V-230V.

•Different plug type available.

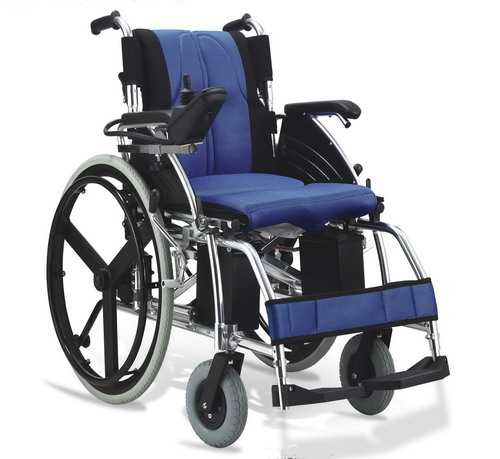

Electric Wheelchair Specificaton:

•Motor: 100wx2.

•Battery: 12Vx2, 20AH.

•Slope: ≤12°

•Running distance(fully charged):≤20KM

•Speed：1-6KM/H

•Get across obstable: ≤5CM.

•Anodized aluminum frame.

•Lithium Battery

•Color: Silver frame and blue seat.

•Foldable backrest, soft seat is durable, attractive and easy to clean.

•Urethane tires mounted on composite wheel provides durability and low maintenance.

•UK Made Controller for an easy and enjoyable driving experience.

•Padded PU armrests provide additional comfort.

•Flip up armrests and footrest, for extra support and pressure relief. Plastic footplates.

•20x5” PU front castors, 24” PU rear drive wheels.

•1 year parts warranty plus 1 year main frame warranty.

• Maximum User Weight……………………………………. 110kgs

• Maximum Safe Incline……………………………………....12°

• Max Speed ………………………………………………….. 4.0mph/6.0kph

• Batteries ……………………………………………………..20amp x 2

• Motor ……………………………………………………..….100 watt x 2

• Range …………………………………………………….….12mile/20km

• Chassis Colors ……………………………………….…….Silver+Blue

• Kerb Climbing Height w/ Kerb Rider …….……………….5 cm

• Overall Width ……………………………………………….75cm

• Seat Width ………………………………………………….46cm

• Seat Height ………………………………………..……….52cm

• Overall Height …………………………………..………….91cm

• Front/Rear wheel ……………………………….………….5”/24”

• NW/GW ………………………………………………….….27/29 kg

• Package …………………………………………………….1pc/bag, 1bag/ctn

• Carton Size  ……………………………………………….98x48x78 cm

•20ft/40ft HQ …………………………………………………75/180 pcs
